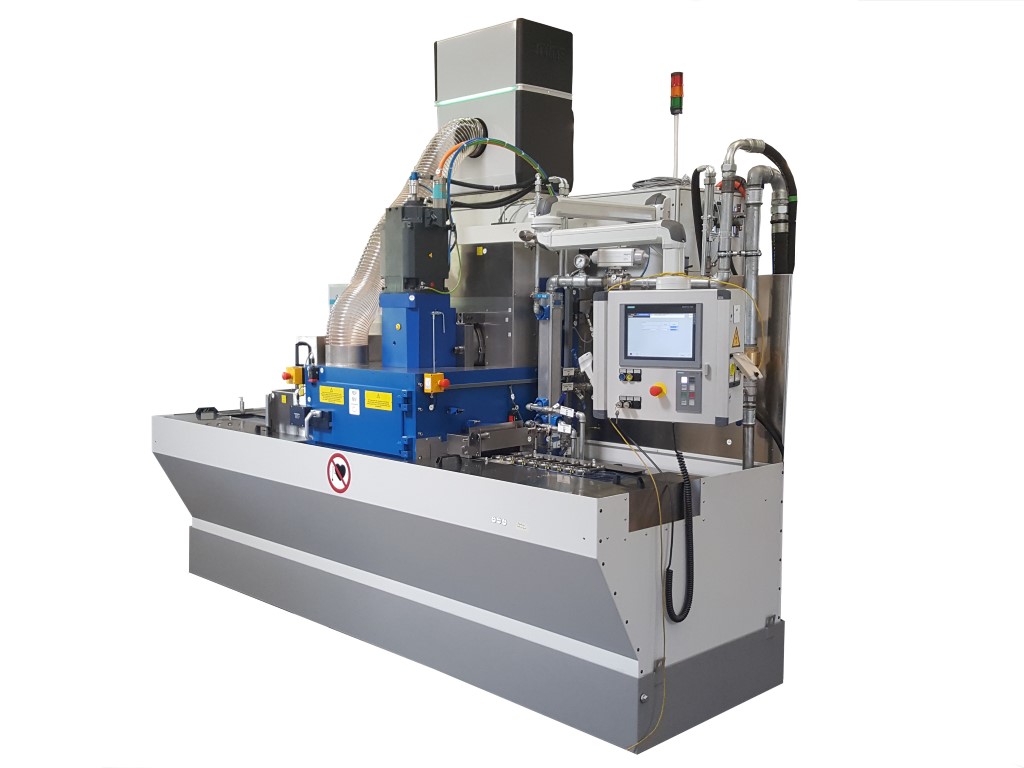

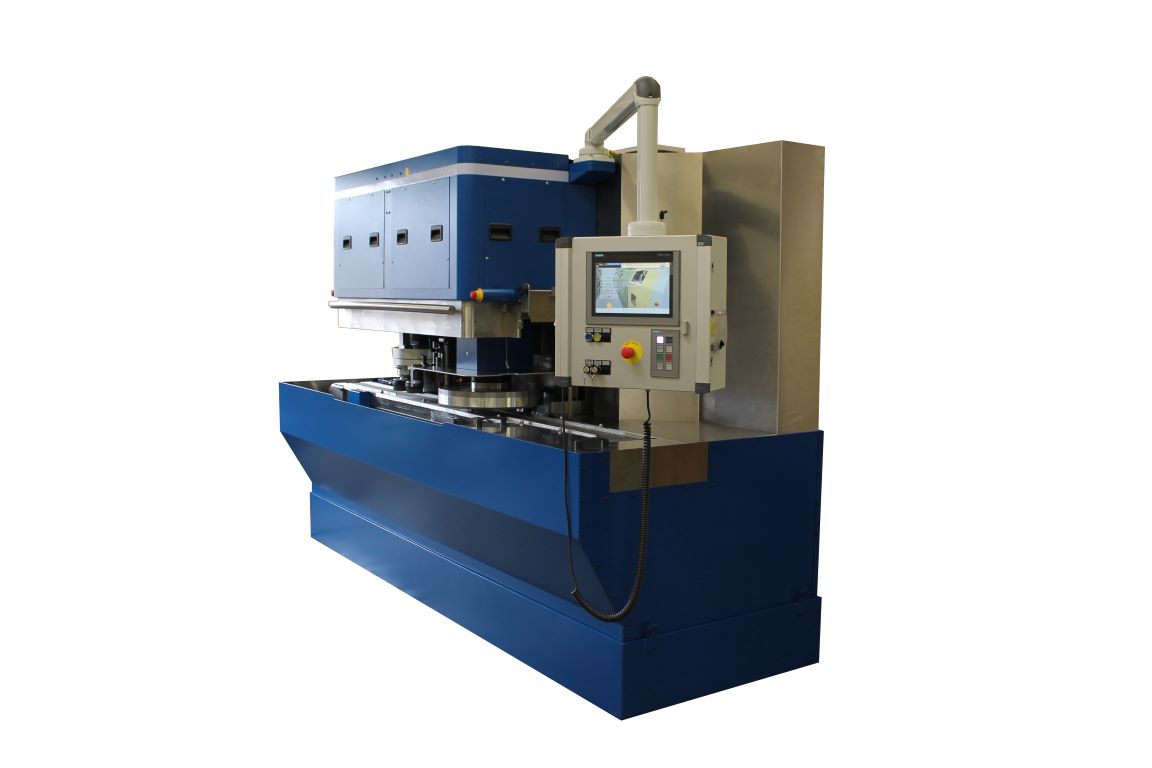

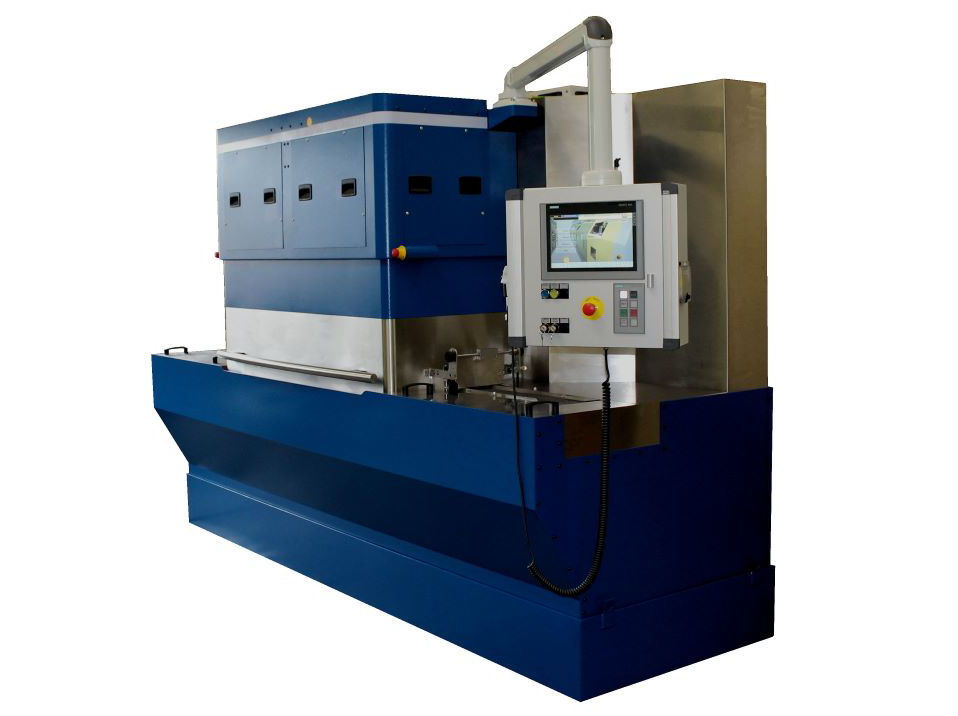

STAG 180/500
Continuous through feed grinder, can be combined with up to 2 vertical stations
Performances
Resolution 0.005 mm or 0.001 mm (optional)
High performance spindles, direct drive
Modular rigid frame of grey cast iron combined with prestressed concrete
Measurement and automatic servo

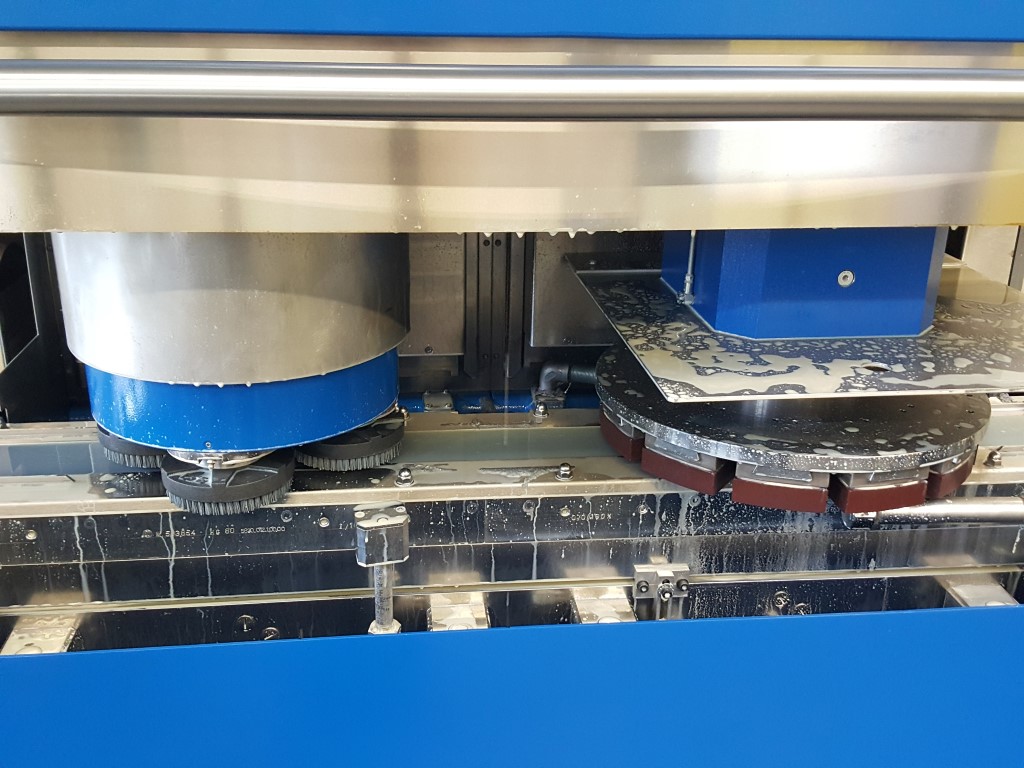

Additional brushing and/or polishing module
Can be combined with up to 3 stations continuously
Automatic, semi-automatic or manual loading
Documents
Technical specifications
- Number of spindles 1 + brushing unit optional
- Spindle ø200x500 mm
- Z-axis 120 mm
- Rotation speed 0 - 4000 rpm
- Power 11 /28 /35 / 2.5 (brushing unit) kW
- Width 180 mm
- Height 1 - 100 mm
- Abrasive tools CBN / Diamond / Al2O3
- Grinding wheel ø400 / ø500 mm
- Infeed 0 - 6000 mm/min
- Electrical control Siemens S7/1500/TIA
- Total weight 4 - 5 t
- Stock removal 0 - 5 mm
- Resolution 0.001 mm
Technologies
Through feed surface grinding
1V
Continuous through feed flat surface grinder equipped with 1 vertical spindle
